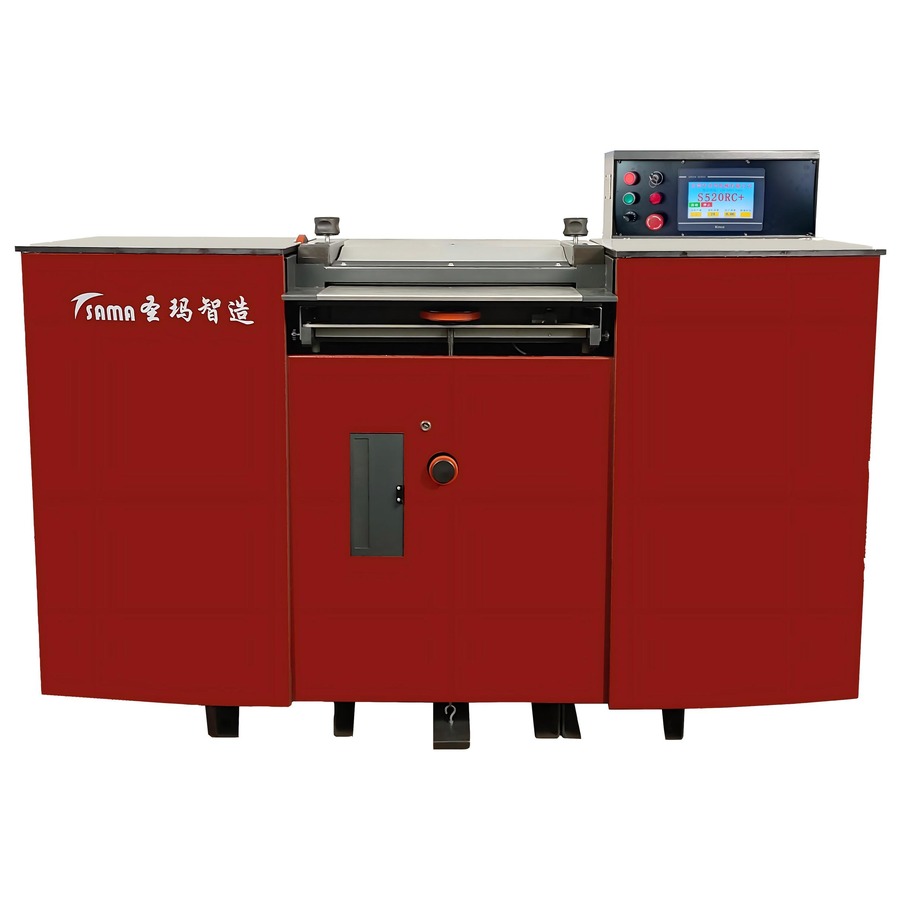

520RC+ Leather Splitting Machine
获取 S520RC+ 定制报价520RC+ splitting machine
Overview
The S360C is a versatile small-size leather splitting machine that strikes the perfect balance between capacity and footprint. With a 340mm maximum feeding width, it is ideal for shoe factories, handbag manufacturers, and small to medium leather goods producers who need reliable splitting performance for daily production. The S360C builds on the success of our compact S320C while offering increased feeding width and enhanced features. The machine achieves a minimum splitting thickness of 0.1mm with pressure foot and 0.5mm with roller, ensuring precise and consistent results across a wide range of leather types, from delicate lambskin to sturdy cowhide. Equipped with a 3.2kW main motor and a robust feeding system, the S360C delivers consistent power and smooth operation even during extended production runs. The variable speed feeding system allows operators to fine-tune the feeding speed for different materials and production requirements. The S360C features a heavy-duty cast iron frame, precision-ground rollers, and a built-in blade sharpening system, all designed to ensure years of reliable service with minimal maintenance. As with all SAMA machines, the S360C and its spare parts are 100% compatible with Italian Camoga machines.
Technical Specifications
| Model | S520RC+ |
|---|---|
| Maximum Feeding Width | 500mm |
| Minimum Splitting Thickness (Pressure Foot) | 0.1mm |
| Minimum Splitting Thickness (Roller) | 0.5mm |
| Feeding Speed | 0-20m/min Variable Speed (Stepless Adjustment, Sensor) |
| Main Motor Power | 3.5kW |
| Series | RC+ Series |
| Blade Type | Band Knife (Compatible with Camoga) |
| Sharpening System | Built-in Automatic Blade Sharpening |
| Frame Construction | Heavy-Duty Cast Iron |
| Voltage | 380V / 50Hz (Customizable) |
| Compatibility | 100% Compatible with Italian Camoga Machines & Parts |
Key Features & Benefits
- 340mm maximum feeding width for versatile production
- 0.1mm minimum splitting thickness with pressure foot
- 0.5mm minimum splitting thickness with roller
- Variable speed feeding system for full control
- 3.2kW main motor for consistent performance
- Heavy-duty cast iron frame for stability
- Precision-ground rollers for consistent quality
- Built-in blade sharpening system
- 100% compatible with Camoga machines and parts
- Ideal for shoe factories and handbag manufacturers
Product Description
The S360C is a versatile small-size leather splitting machine that strikes the perfect balance between capacity and footprint. With a 340mm maximum feeding width, it is ideal for shoe factories, handbag manufacturers, and small to medium leather goods producers who need reliable splitting performance for daily production. The S360C builds on the success of our compact S320C while offering increased feeding width and enhanced features. The machine achieves a minimum splitting thickness of 0.1mm with pressure foot and 0.5mm with roller, ensuring precise and consistent results across a wide range of leather types, from delicate lambskin to sturdy cowhide. Equipped with a 3.2kW main motor and a robust feeding system, the S360C delivers consistent power and smooth operation even during extended production runs. The variable speed feeding system allows operators to fine-tune the feeding speed for different materials and production requirements. The S360C features a heavy-duty cast iron frame, precision-ground rollers, and a built-in blade sharpening system, all designed to ensure years of reliable service with minimal maintenance. As with all SAMA machines, the S360C and its spare parts are 100% compatible with Italian Camoga machines.
Applications & Industries
The S360C is suitable for a wide range of applications and industries:
Frequently Asked Questions
Q: What industries is the S360C best suited for?
A: The S360C is ideal for shoe factories, handbag manufacturers, small leather goods producers, and garment leather processing. Its 340mm feeding width handles most production-sized leather pieces with ease.
Q: How does the S360C compare to the S320C?
A: The S360C offers a larger 340mm feeding width (vs 300mm on the S320C), making it more suitable for production environments where larger leather pieces are processed. Both models share the same precision, power, and build quality.
Q: Can the S360C handle high-volume production?
A: Yes. The S360C is built with a heavy-duty cast iron frame and a 3.2kW motor, designed for reliable operation during extended production runs. It is well-suited for small to medium production volumes in shoe and leather goods factories.
Q: What is the minimum splitting thickness?
A: The S360C achieves a minimum splitting thickness of 0.1mm with the pressure foot and 0.5mm with the roller, suitable for a wide range of leather types from delicate to sturdy.
Q: Do you offer after-sales support?
A: Yes. We provide comprehensive after-sales support including English manuals, video tutorials, remote technical support, worldwide spare parts delivery within 48 hours, and optional on-site service.
